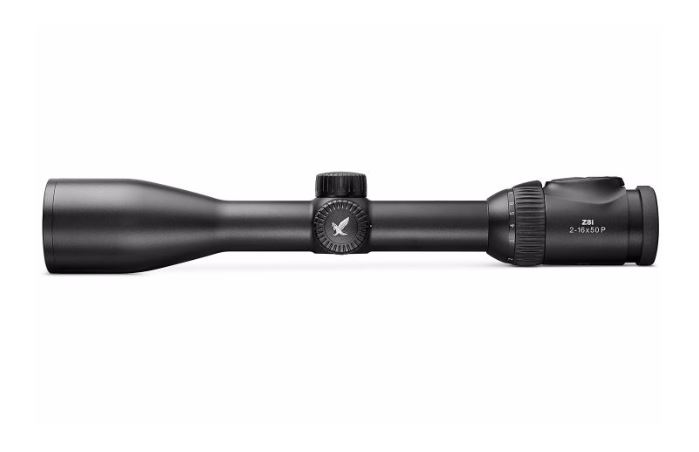

Swarovski Z8i 2-16x50 P Rifle Scope

SWAROVSKI Z8I 2-16X50


Technical Data

Magnification 2-16x

Effective objective lens diameter (mm) 16.3-50

Exit pupil diameter (mm) 8.1-3.1

Exit pupil distance (mm) (Eye relief) 95

Field of view (ft/100 yds / m/100 m) 63.0-7.8 / 21.0-2.6

Field of view (degrees) 12.0-1.5

Dioptric compensation (dpt) -3 to +2

Light transmission (%) 93

Impact point correction per click (in/100 yds / mm/100 m) 0.36 / 10

Max. elevation / windage adjustment range (in/100 yds / m/100 m) 54 / 1.5

Parallax correction (yds / m) 55-∞ / 50-∞

Objective filter thread M 52x0.75

Length (in / mm) 14 / 356

Weight (oz / g) 23.8 / 675

Central tube diameter (in / mm) 1.18 / 30

Functional temperature -4 °F to +131 °F (-20 °C / +55 °C)

Illumination unit

Brightness levels Twilight: 0 - 32 / Day: 33 - 64

Operating time (h) Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
