- Product Code: 10677
- EAN: 9008729006779
- Warranty: 10 years
- Weight: 1 kg
- Reticle: SKMR4
- Main tube diameter: 34mm
- Side turret location: On the left
- Product temporarily out of stock

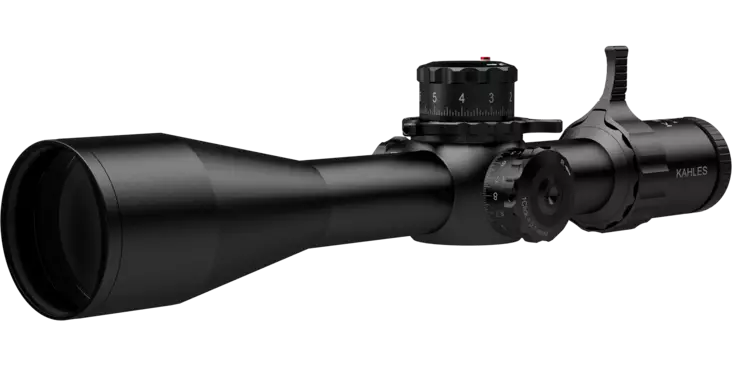

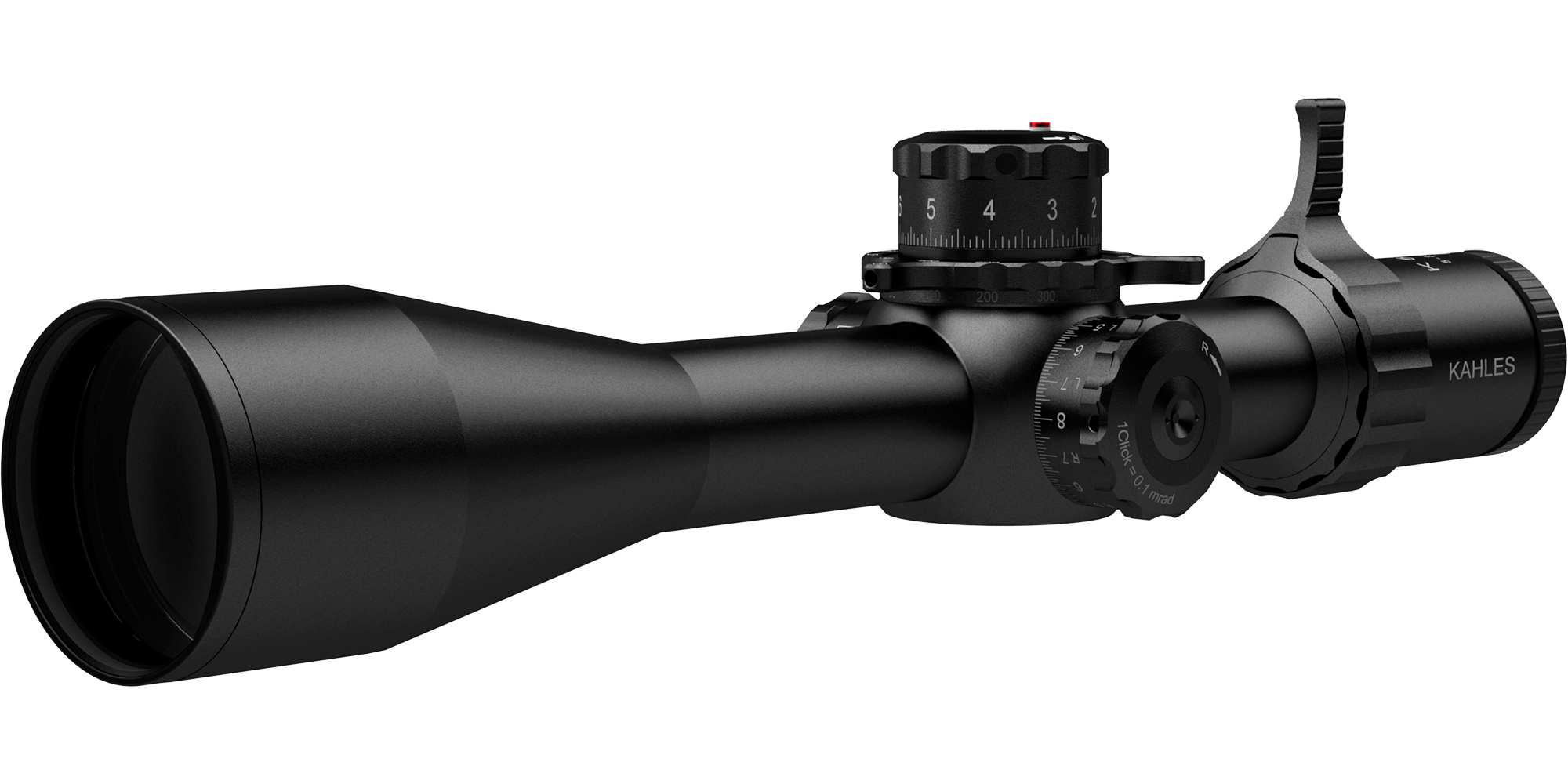

Kahles K525i 5-25x56 DLR Rifle Scope
The K525i DLR combines maximum optical performance and precision with unique handling and ergonomics. The DLR version is optimized for fast shooting in Dynamic Long Range competitions. It features an expanded field of view, easy-to-read click adjustments, an exceptionally long throw lever, and parallax wheel.
Highlights:
• Maximum optical performance with an extremely wide field of view
• 100 clicks per rotation – reliable repeat accuracy and very clear metal clicks
• Extremely large turret lettering for easy and quick reading
• Optional left or right TWIST GUARD windage adjustment turret
• Special features: extra-long throw lever and parallax spinner for quick adjustments
• Precision illuminated SKMR / SKMR4 reticle in the first focal plane
Technical Specifications
• Magnification: 5-25x
• Objective diameter: 56mm
• Eye relief: 95mm
• Field of view: 7.7-1.6 m/100m
• Diopter compensation: +2/-3.5 dpt
• Exit pupil Ø: 9.5-2.3mm
• Twilight factor (DIN 58388): 16.7-37.4
• Adjustment clicks: 0.1mil = 10mm/100m
• Adjustment range for elevation/windage: 2.9/1.3 m/100m
• Tube diameter: 34mm
• Parallax adjustment: 20m-?
• Turrets and adjustments: Windage on the right, CCW turret adjustments
• Reticle: SKMR4+
• Length: 377mm
• Weight: 995g
• Image plane: 1
• Illuminated: Yes
• Warranty: 10 years (2 years for electronics)
